IEC60061-3 7006-26-4 Not Go Gauges for screw Threads of Lampholders E40
  • prev
  • Next

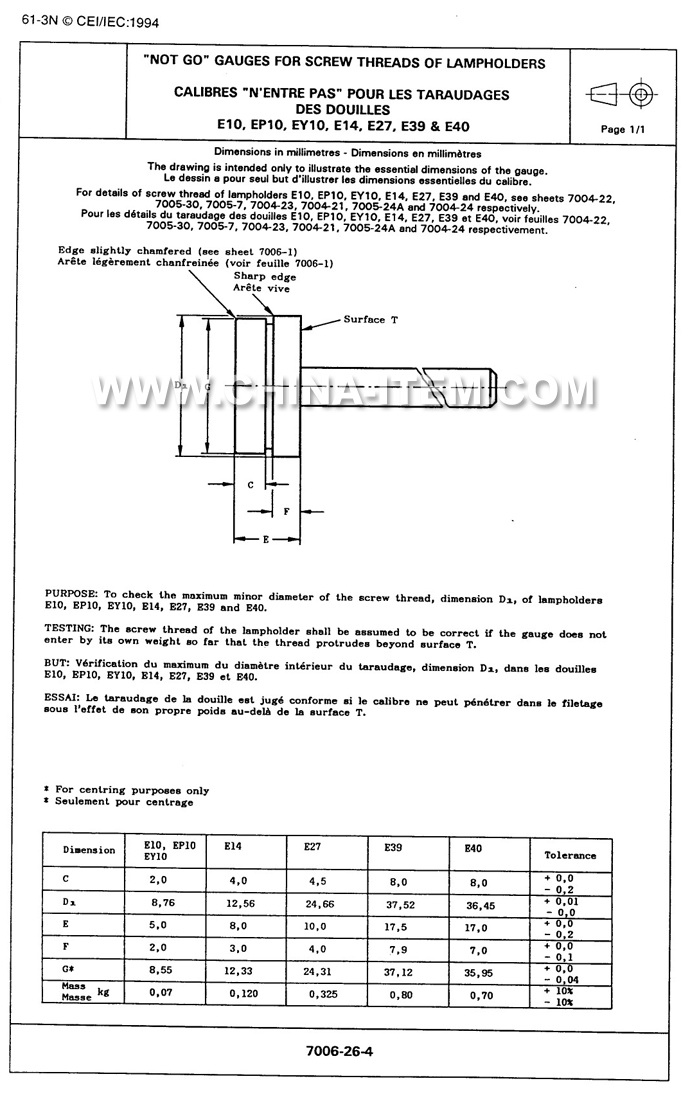

IEC60061-3 7006-26-4 Not Go Gauges for screw Threads of Lampholders E40

The drawing is intended only to illustrate the essontial dimensions of the gauge.

For details of screw thread of lampholders E10, EP10, EY10, E14, E27, E39 and E40, see sheets 7004-22, 7005-30, 7005-7, 7004-23, 7004-21, 7005-24A and 7004-24 respectively.

Edge slightly chamfered (see sheel 7006-1)

PURPOSE: To check the maximum minor diameter of the screw thread, dimension D1, of lampholders E10, EP10, EY10, E14, E27, E39 and E40.

TESTING: The screw thread of the lampholder shall be assumed to be correct if the gauge does not enter by its own weight so far that the thread protudes beyond surface T.


7006-26-4 Not Go Gauges
